MIG MULTI RANGE / MIG - MAG WELDERS
MIG 160 MULTI

  • Cod.: 1.1875
mig160multi
191128115012-cable_electrodo_web_mod
191128115022-cable_masa_web_mod
200225125922-antorcha_mig_13ak_8110

All about MIG MULTI RANGE / MIG - MAG WELDERS
MIG 160 MULTI

  • STAYER MIG MULTI range, with connection for EUROTORCH torch and with power of 160-170 amps.
  • Designed for MIG, TIG and MMA processes of the highest quality.
  • Easy setup in MIG mode, possibility to use gas or hollow wire without gas.
  • With gas, connect torch return to positive terminal (+).
  • Hollow wire without gas, connect torch return to negative terminal (-).
  • Efficient and simple wire welding adjustment of only two buttons: one for control including speed mode and one for voltage. A switch enables the change of the wire work mode (MIG) and electrode mode (MMA) and TIG.
  • Protection against over temperature and over currents.
  • Very complete equipment including torches, sheave, ground cables and electrode holder
  • IGBT technology based on state-of-the-art microprocessor control capable of providing up to 170 amps (MIG 170).
  • Transportable and robust: Compact, low weight due to the use of fully inverter power circuitry. Oversized and quality components.
  • MIG 160 for coils from 0.5 to 1Kg.
  • MIG165 / 170 is for coils from 0.5 to 5Kg.
  • Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
  • Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
  • Mains input cable. 2x 2.5 mm²

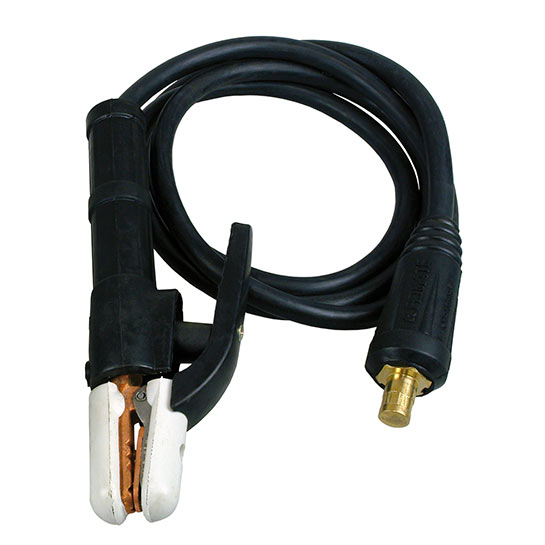

  • Electrode clamp and cable. 2.5 m x 16 mm²

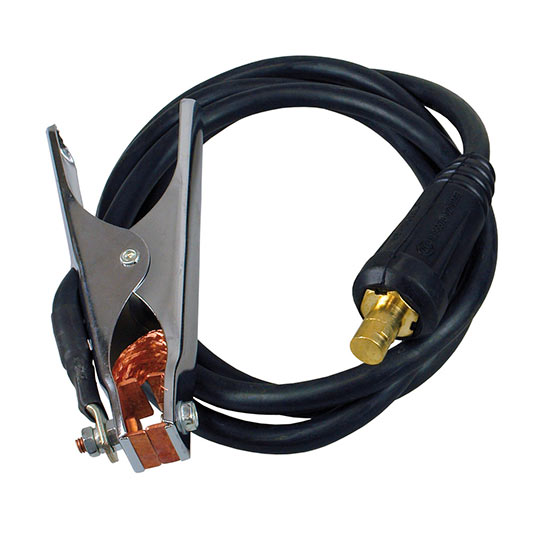

  • Ground clamp and cable. 2.5 m x 16 mm²

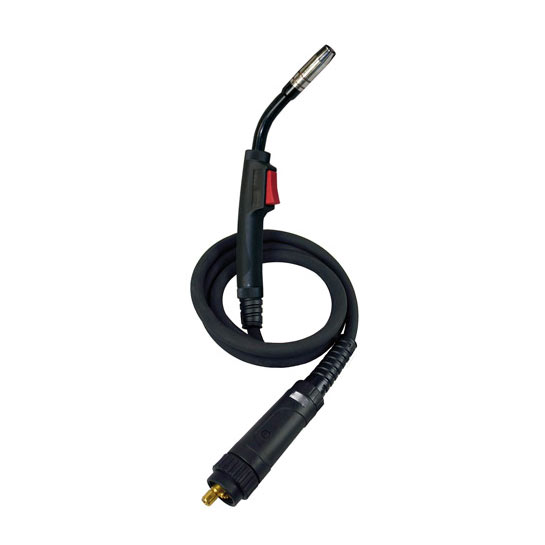

  • MIG Torch 13AK
  • Wire feeder internal
  • Contact tips x1 Pc 0.8 /x1 Pc 0.6
  • Current160 A
  • Voltage230 V
  • Duty Cycle60 %
  • Coated Electrodes1.6 – 4.0 mm
  • Thread thickness0.8 mm
  • Coil weight0.5 – 1 kg
  • Generator5 – 7 KVA / 230V ±17%
  • Dimensions36 x 27.5 x 16.5 cm
  • Weight8 kg
  • Borna connector3/8” (10 – 25) ø
  • Power cord2m x 2.5 mm²
  • Cable + ground clamp2.5m – 16 mm²
  • Cable + electrode clamp2.5m – 16 mm²
  • MIG torch13 AK
  • Contact tip included0.8 mm
  • Sheaves included0.6 – 0.8 mm
  • Cod.1.1875
