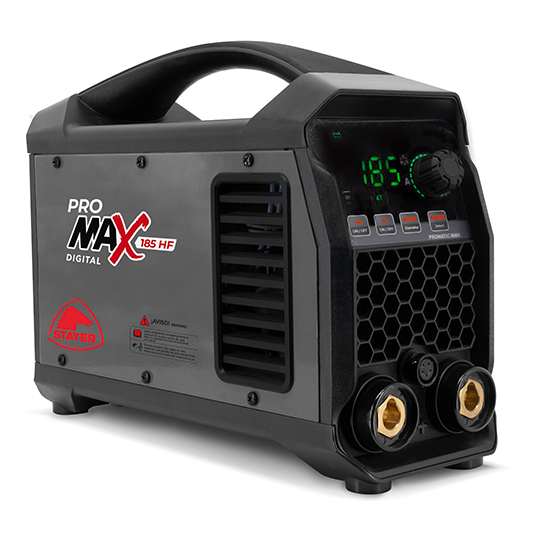

INVERTER MMA WELDER 185A
PRO MAX 185 HF K

All about INVERTER MMA WELDER 185A
PRO MAX 185 HF K

  • Inverter welding equipment for coated electrode with High Frequency HF, synergistic and pulsed.
  • Unique equipment on the market, welding with high frequency electrode, it is not necessary to scrape the electrode to start welding.
  • Professional operating factor: 100% with air at 30ºC

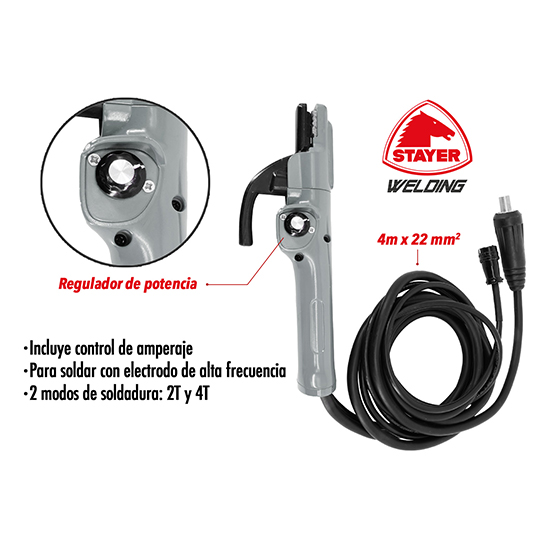

  • Includes electrode holder with power regulator and high frequency control in 2T / 4T modes.
  • Premium features compared to similar models from other brands: 185A continuous, no-load voltage =78Vdc.
  • It incorporates a professional active cooling system with a smart fan.
  • It has welding options with pulsed, synergistic and normal coated electrode, all modes with the possibility of High Frequency.
  • Pulsed TIG and normal TIG welding.
  • Equipment completely prepared for safe use with stabilized generators.
  • Solid construction in accordance with European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU and IEC 60974.
  • Maximum power density: the lightest equipment in its category: 5.9 Kg in weight.
  • Pulsed type welding for thin sheets up to 1mm:
    • Pulsed MMA from 40 Amps
    • Pulsed TIG from 15 Amps (possibility of using electrode in this mode)
  • Optimum welding for rutile, basic, cellulosic, stainless steel,
    cast, high performance, etc…

       It Includes:

  • Power cable 2m x 2.5m.
  • Electrode holder cable 4m x 32mm²
  • Ground cable with clips 1.5m x 32mm².

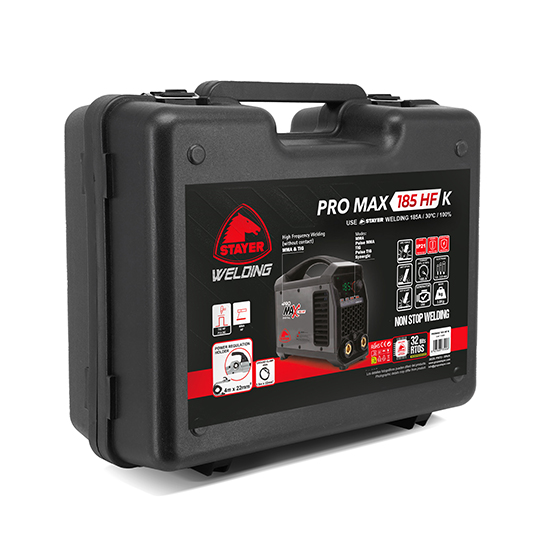

  • Plastic briefcase.
  • Intensity185 A
  • Electrode 1.6 – 5.0 mm
  • Weight 3.8 kg
  • Power supply 230 V
  • Generator5-7 KVA
  • Dimensions37 x 28 x 15 cm
  • Bornas DINSEø 1/2” (35 – 50)
  • Cod.1.3538
