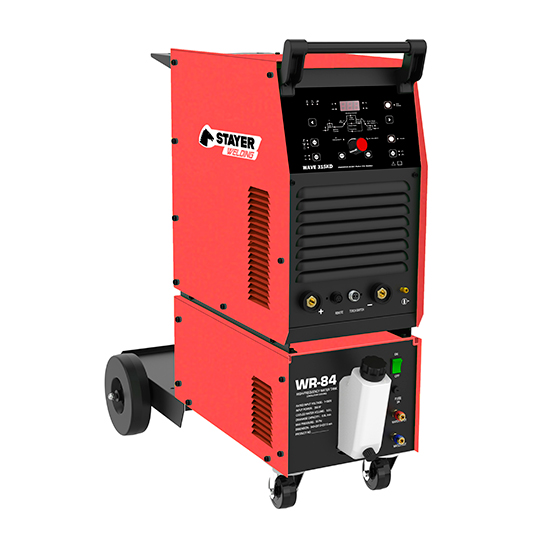

AC/DC PULSED TIG WELDER - 315A
TIG AC/DC 315 B HF P

  • Cod.: 1.3890
tig_wave315KD_10
tig_wave315KD_antorcha_tig_11
tig_wave315KD_cable_electrodo_12
tig_wave315KD_cable_masa_13
tig_wave315KD_antorcha_tig_accesorios_14
tig_wave315KD_magueragas_10

All about AC/DC PULSED TIG WELDER - 315A
TIG AC/DC 315 B HF P

  • Intuitive microprocessor-controlled panel welding control options with STAYER software.
  • Professional HF-HV (High Frequency/High Voltage) 2T/4T priming functions, optional DC mode control, pulse mode control, AC mode control, ramp and gas control, gas flow and post-flow control, and spot weld mode with and without model repeat.
  • Water-cooled via chiller for hot environment service and aluminium welding up to 315 amps.
  • Optional: Includes special connector to enable a foot pedal to control the amperage for professional TIG welding.
  • Double reactor to generate alternating current (AC) for precise aluminium welding.
  • Robust construction with thick sheet metal, quality components, state-of-the-art EMI filter, double ventilation for optimum performance.
  • Prepared for use with stabilised generator, given its input voltage range of +/-17%.
  • Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
  • Power cable. 3m x 4 mm2

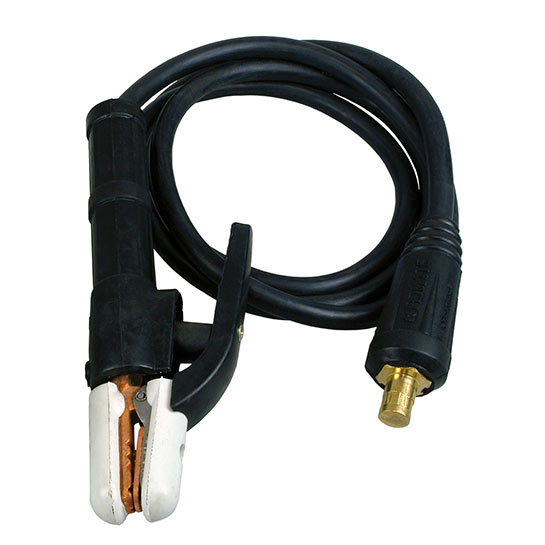

  • Electrode-holding cable. 3m x 25 mm2

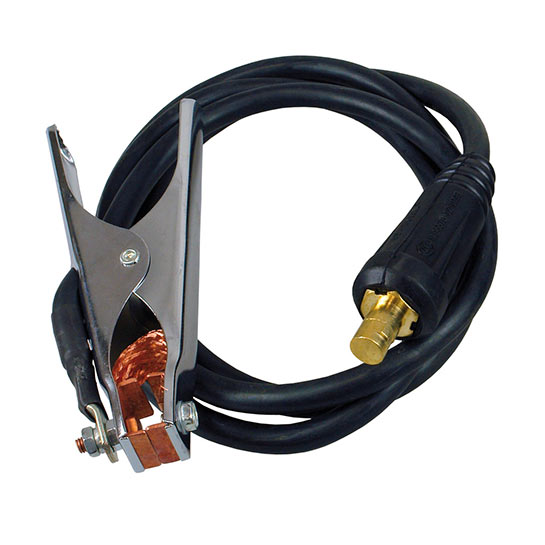

  • Ground cable with clamps. 3m x 25 mm2

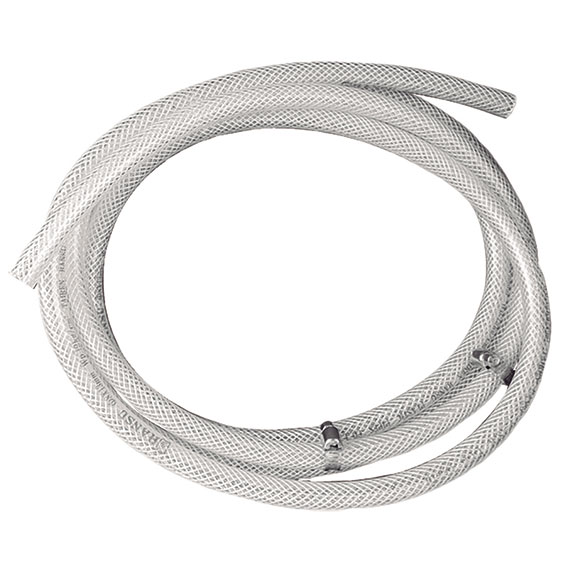

  • Gas hose. 3m
  • Intensity315 A
  • Electrode1.6 – 6 mm
  • Weight51 kg
  • Power supply3 PH x 400 V
  • Generator12 KVA
  • Dimensions76x115x51.5 cm
  • DINSE terminals1/2”(35-50)
  • Cod.1.3890
