60% DUTY CYCLE, TIG AC/DC PULSED & MMA

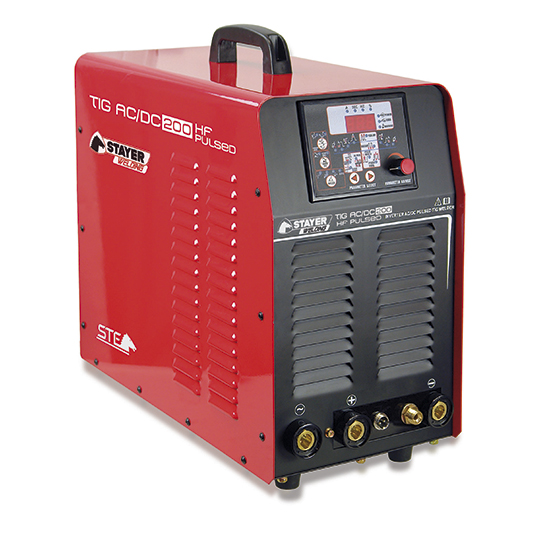

TIG AC/DC 200 HF P

All about 60% DUTY CYCLE, TIG AC/DC PULSED & MMA
TIG AC/DC 200 HF P

  • Professional electronic equipment for manual electric arc welding, welds coated electrode as well as non-contact TIG HF (High Frequency). Both DC and AC.
  • Robust professional construction, well exceeding the European and international directives 2014/30/EU, 2014/35/EU and standard series EN/IEC 60974.
  • Professional TIG with high-frequency arc ignition. Ideal for maximum quality in steels, INOX, aluminium and welding in small and large thicknesses.
  • Professional: Continuous duty (60% duty cycle with air at 40ºC) at 200A, no-load voltage 65 Vdc.
  • Working modes: 2T, 4T, continuous and pulse welding. Includes ramp control for AC and DC TIG.
  • Efficient and easy electrode welding, thanks to the intelligent STAYER WELDING control that includes Hot Start, Arc Force and Anti Stick advantages to optimise the initial arc striking, improve arc stability during welding and prevent electrode sticking due to mishandling.
  • Easy and accurate setup and process control by SCADA system with rotary encoder with push button, settings by weld type, 3-digit display and 24 parametric LEDs.
  • 3 types of operation: MMA for coated electrode, AC/DC flat TIG and AC/DC pulsed TIG up to 100Hz.
  • Fully prepared for safe use with AVR stabilised generators.
  • Power cable 3m x 2.5mm²

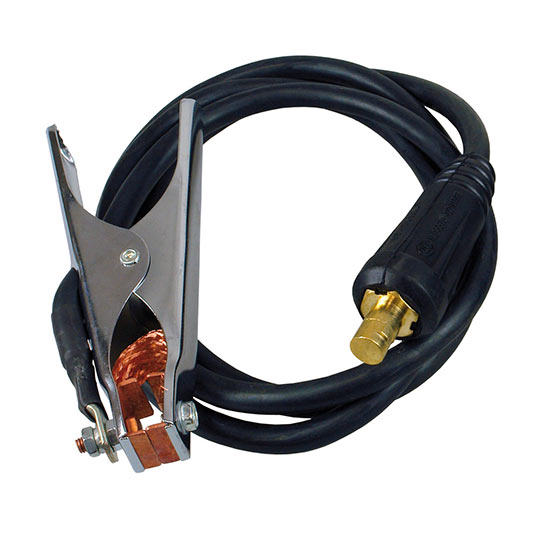

  • Cable with clamps 3m x 25mm²
  • Electrode holder cable 3m x 25mm²

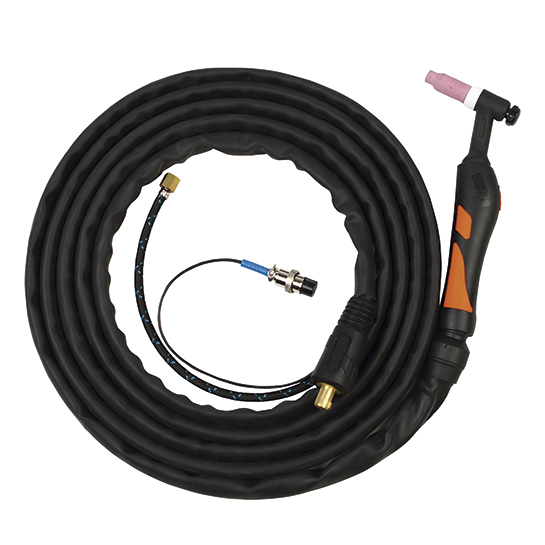

  • Ergonomic torch SR17, TIG HF 3 x 16 mm²

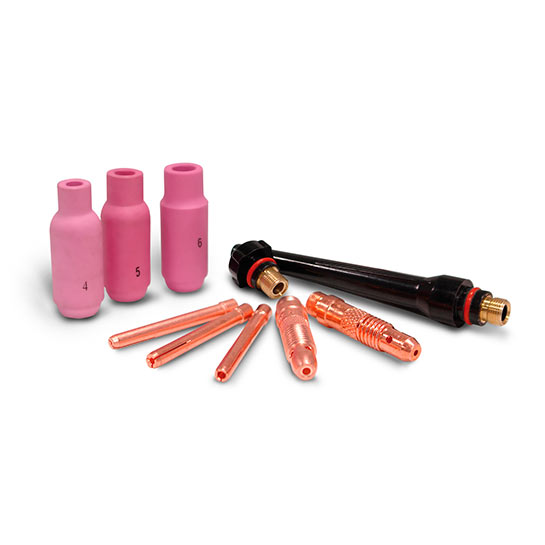

  • TIG Torch Accesories
    • 4 Noozles
    • 3 electrode holders
    • 2 electrode caps

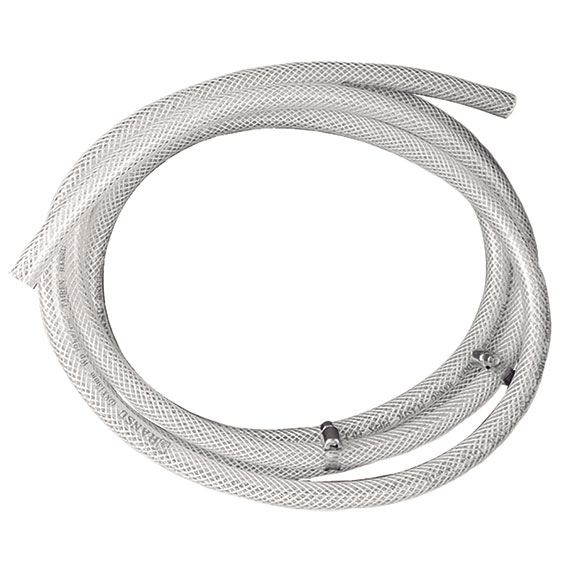

  • Gas Hose

All accessories available in our catalogue.

  • Output current200 A
  • TIG / MMA electrode0.5-3.2 / 5 mm
  • Weight12 Kg
  • Power supply230 V
  • Generator7 – 9 KVA
  • Dimensions44x36x19 cm
  • DINSE Connectorø 1/2” (35 – 50)
  • Cod.1.2887
